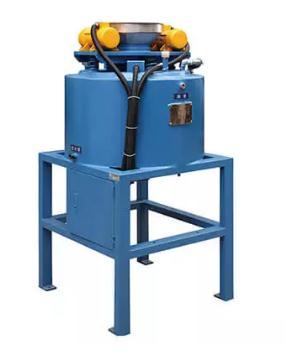

Dry powder electro magnetic separator with stainless steal body

  • Detail
  • Parameters

Simple connecting: Inoperation, the main engine vibration. The input and output of the raw materialcan be connected by an outer pipe or a canvas bag.

High temperature material handling: standard models can handle raw materials with temperaturesup to 70 degrees, while special models can be used to handle high temperatureraw materials.

Sample installation: aslong as the bracket is safe, the equipment can be installed arbitrarily

Magnetic filter screen cleaning is convenient: put a tray at the exit of the material to be separatedfrom the recycling materials, at the same time to turn off the power to screendegaussing, convenient cleaning work.

Thoroughly separate iron powder and basic material: the basic material will never enter the separation box.






New type electromagnetic iron removing machine dry powdermachine mainly for cathode and anode powder materials research and development,the characteristics of magnetic pole angle mostly, the magnetic flux density ofthe absolute value of machine sorting area more evenly, play its magneticseparation effect, according to the ore properties of different designdifferent field strength, in addition the electromagnetic powder in the processof selection. No effect to overcome gravity and material resistance, when thenon magnetic minerals from magnetic field, under the action of gravity, mineralwell separation and magnetic drum, and electromagnetic powder increased themechanical vibration device, not only can improve the effect of removing iron,but also can realize the abandoned iron convenient.






Model

20K400

15K350

11K300

7K300

3K190

Magnetic field strength(T)

4

4

3.5

3

3

Input voltage(VAC)

380

220

380

380

380

Maximum coil power   (KW)

20

15

11

7

3

Insulation category

E

E

E

E

E

Cooling method

water and oil cooling

water and oil cooling

water and oil cooling

water and oil cooling

water and oil cooling

Magnetic cavity           diameter(mm)

400

350

300

300

190

Yield(T/h)

2-8

2-6

2-4

2-4

1-3

Dimension(mm)

1600*1600

*1300

1500*1500

*1300

1400*1400

*1300

1200*1200

*1300

800*800

*1100

Main machine weight (KG)

1800

1560

1300

1160

590

Usage

8-1000 mesh feedstock of raw material of   ceramics, quartz sand, kaolin, feldspar powder, pigment, chemical material, etc.
